Premium Transparent OLED Display for High-End Visual Merchandising
The 30 Inch Transparent OLED Display with 43% transparency and 135,000:1 ultra-high contrast ratio is an advanced digital signage solution designed for retail stores, museums, exhibitions, luxury showrooms, and smart commercial environments. It combines cutting-edge transparent OLED display technology with self-emissive pixels to deliver a futuristic visual experience where digital content appears to float in space while real objects remain fully visible behind the screen.
As a professional OLED display manufacturer, we provide innovative transparent OLED screen solutions that redefine modern transparent digital signage for interactive branding, storytelling, and immersive product presentation.
Ultra-Clear Transparent OLED Screen with Self-Emissive Technology
High Contrast Imaging with Natural Transparency
This transparent OLED screen uses self-luminous pixel technology, meaning each pixel emits its own light without the need for a backlight. This enables exceptional image clarity and deep black levels while maintaining high transparency.
Key display features include:
- 30-inch transparent OLED panel
- 43% optical transparency
- 135,000:1 high contrast ratio
- Wide 178° viewing angle
- Ultra-thin display structure
- High color accuracy and vivid reproduction
- Smooth motion performance for video and animation
The combination of high transparency and high contrast allows digital content to blend naturally with physical exhibits or products behind the screen.

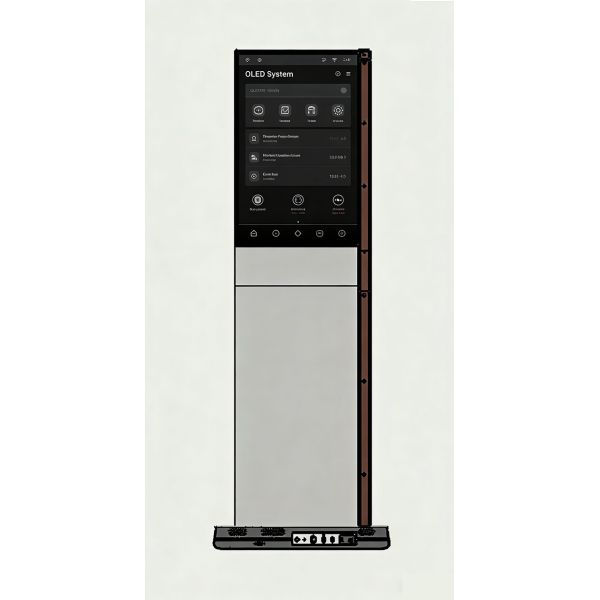

| 30-Inch Transparent OLED Display — "Slim Waist" Upright Model |
| LCD Panel Parameters |
| Screen Size |
30 inch |
| Panel type |
OLED |
| transmittance |
43% |
| Max Resolution |
1366*768 |
| Aspect Ratio |
16:09 |
| Brightness |
200-600cd/㎡ |
| Contrast Ratio |
135000:1 |
| Viewing angle(up/down/left/right) |
R/L 120(min) U/D 120(min) |
|
| Response Time |
0.1ms(Gray To Gray) |
| Display color |
10bit(R),1.07 billon colors |
|
| Onboard interface |
| port |
HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
|
| Touch Method |
| Capacitive Touch screen(Optional) |
Default 10 points Capacitive Touch |
| Power Specifications |
| Power supply |
100-240V~, 50/60Hz |
|
| Total System Power Consumption |
≈85W System Not Included |
|
| Machine Operating Parameters |
| running time |
7*12h |
| Screen life |
30000h |
| Operating temperature |
0℃~40℃ |
| working humidity |
20%~80% |
| structure |
| Material |
Aluminum+Tempered Glass+Metal |
| external dimensions |

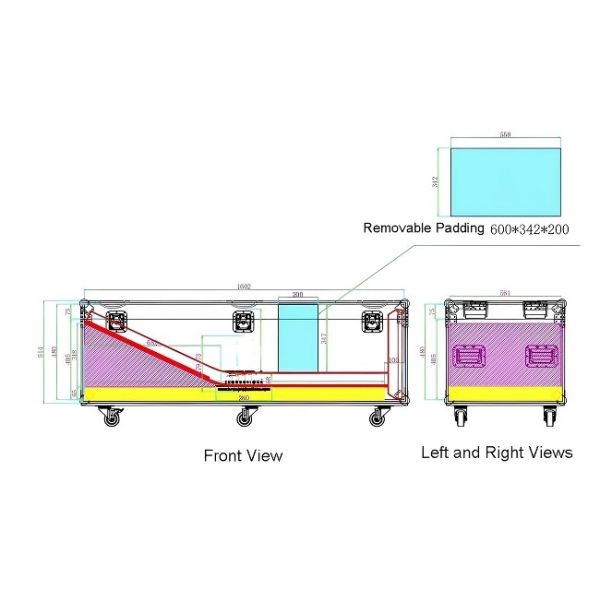

1589.6*546.5*448.5(mm) Refer to the structural dimension drawings. |
| Package size |
Air box 1602*561*648(cm) |
|
| Installation Method |
Base Installation |
| Net weight |
38KG/53.5KG |
| Accessories |
| Power Cord,Remote Control |
| other |
| After-Sales Service |
1-Year Warranty |
OEM & ODM Support from OLED Display Manufacturer
As a professional OLED display manufacturer, we offer full OEM and ODM customization services for global clients.
Customization options include:
- Android or Windows system integration
- Touch and non-touch configurations
- Custom enclosure and installation design
- CMS remote content management system
- Branding and logo customization
- HDMI / USB / LAN / RS232 interfaces
- Software UI customization and integration
We support system integrators, distributors, and commercial project developers with complete transparent digital signage solutions.
FAQ
What is a transparent OLED display?
A transparent OLED display is a self-emissive screen that allows viewers to see through the display while showing vivid digital content.
What does 43% transparency mean?
It means the display allows 43% of background light to pass through, enabling a see-through visual effect.
What is the advantage of 135,000:1 contrast ratio?
It delivers deeper blacks, brighter highlights, and more realistic image quality compared to conventional display technologies.
Where is this display commonly used?
It is widely used in retail, museums, exhibitions, luxury branding, and interactive digital signage installations.
The 30 Inch Transparent OLED Display with 43% Transparency and 135,000:1 Contrast Ratio delivers a powerful combination of visual clarity, transparency, and immersive design. As a professional OLED display manufacturer, we provide advanced transparent OLED screen solutions that elevate transparent digital signage into a new generation of interactive, high-impact commercial experiences.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
